Place of Origin:
China
Brand Name:
UT
briquetting briquette industry pressing machine
Raw Material → Crusher → Dryer → Briquette machine
The whole charcoal production line mainly includes four needed machines: crusher, dryer, briquette making machine.
1. Crusher:
Crusher is to reduce the size of raw materials at 3-5mm, which is suitable for making the briquette.
This crusher can crush: small tree branch, cotton stalks, tree bark, coconut shell, rice straw wheat straw, corn straw, grass river reeds, palm husk, soybean stalk or husk, coffee husk, paddy straw, sunflowers stalk, bamboo and many other agrowastes etc. And the whole production line can help you make the materials into the excellent wood fibers, flour and sawdust directly, save energy and high efficiency. So the invested cost of the charcoal making can be zero.
2. Dryer:
Air current type dryer is to control the moisture content of raw materials at 8-12%, suitable for making briquette. Too dry or too wet will make the briquette loose, can’t have high density. It is professionally designed for drying different kinds of wood sawdust.
The whole system consists of fan blower, motor engine, fuel boiler, steel pipe, cyclone and air lock. In this sawdust dryer machine system, wet material is input into hopper by screw feeder. Fuel furnace
produces large volume of hot air. The hot air is driven into steel pipes, mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower.
Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe; moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.
3. Briquette making machine:
Briquetting is a process during which raw materials are compressed under high pressure and high temperature. After the processing of drying and pressing, the briquette is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal or firewood.

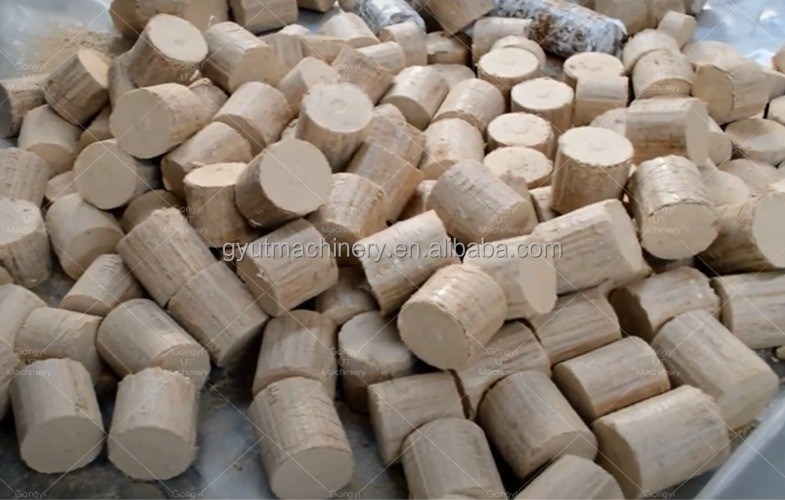

This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal.
Technical Parameter:
|
Model No. |
UT-BJ1 |
UT-BJ2 |
UT-BJ3 |
|
Output |
200-250kg/h |
250-300kg/h |
260-350kg/h |
|
Main Motor Power |
15kw |
18.5kw |
22kw |
|
Electrical Heater Power |
3X1.5kw |
3X2kw |
3X2kw |
|
Dia. of Briquettes |
Ø50 mm |
Ø60 Ø70 mm |
Ø70 Ø80 mm |
|
Density of Briquettes |
1.2-1.4T/CBM |
||

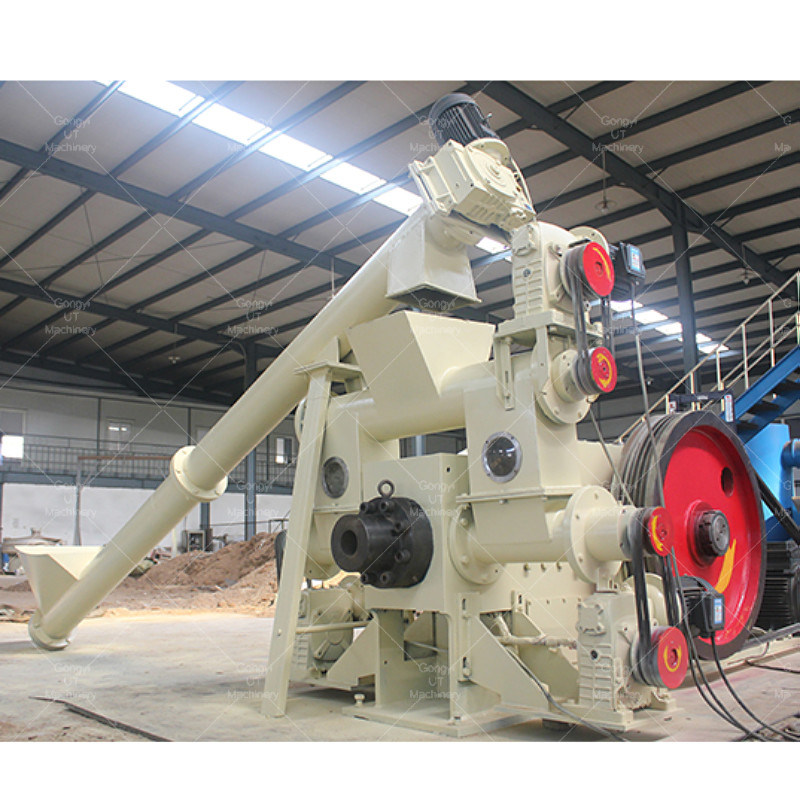

we also supply the big capacity sawdust briquette machine

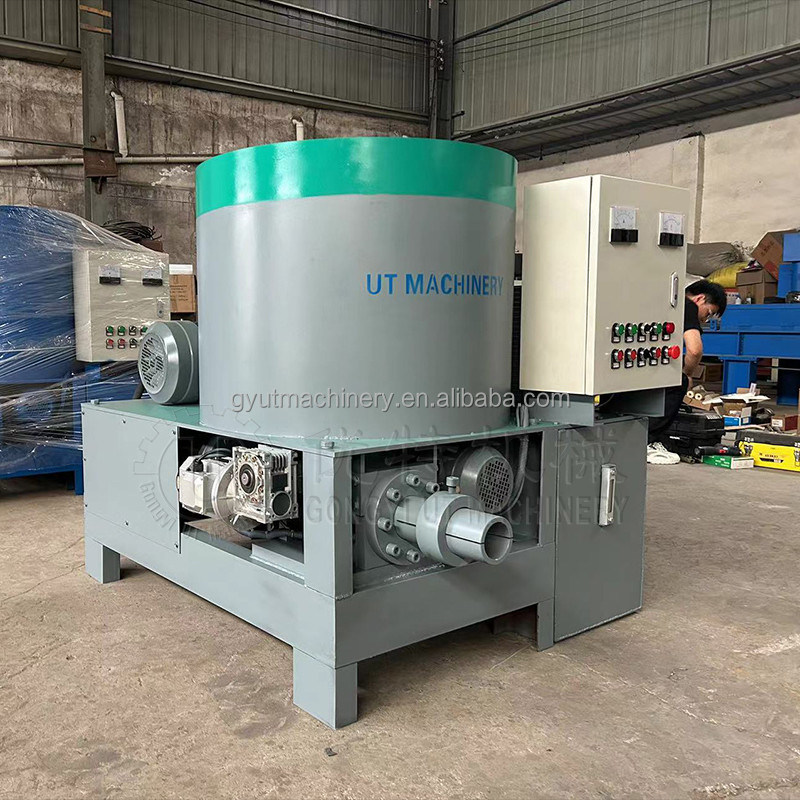

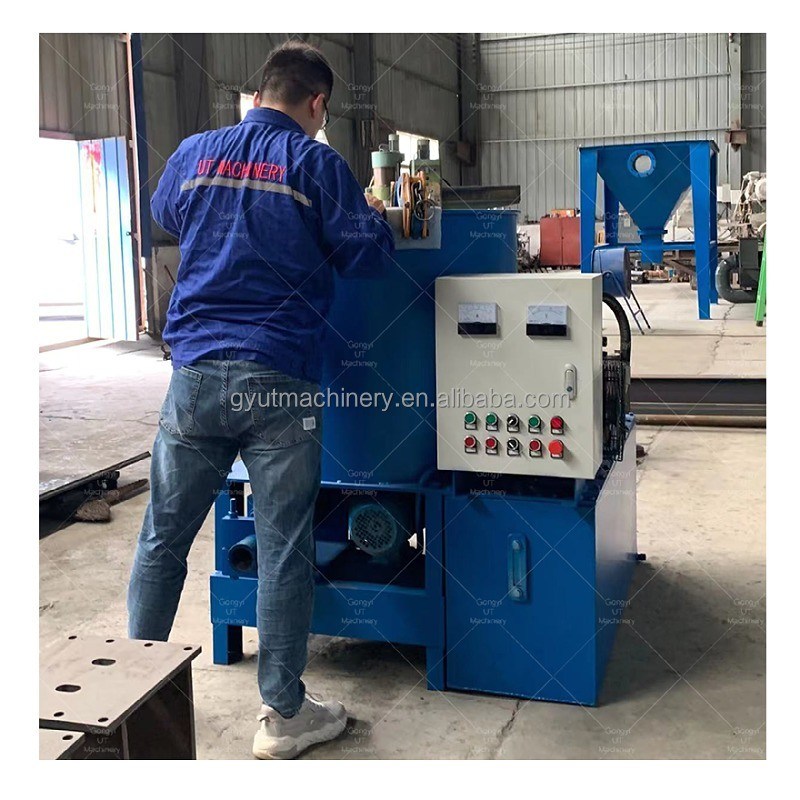

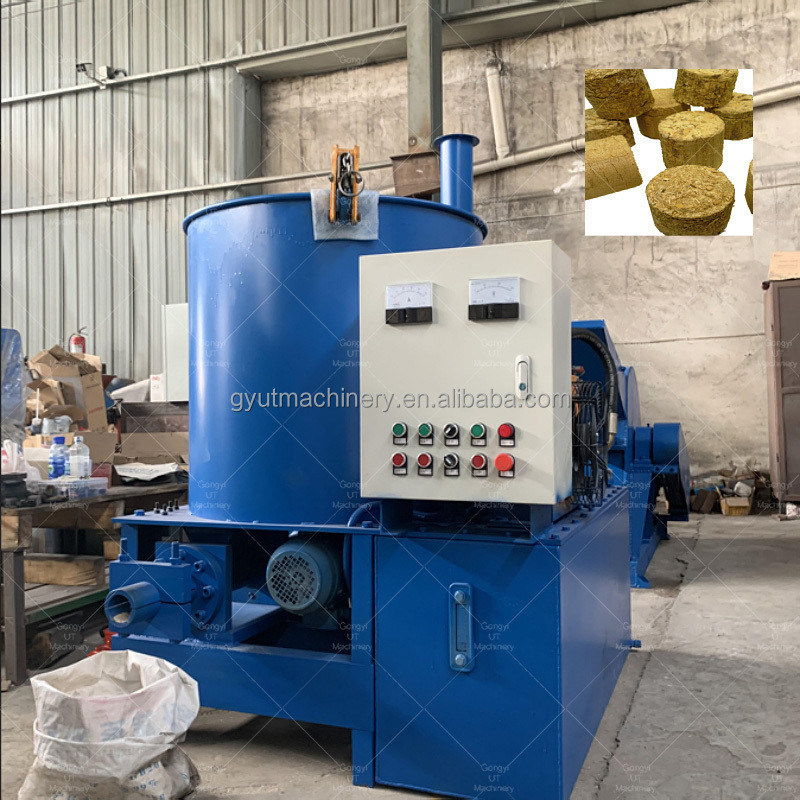

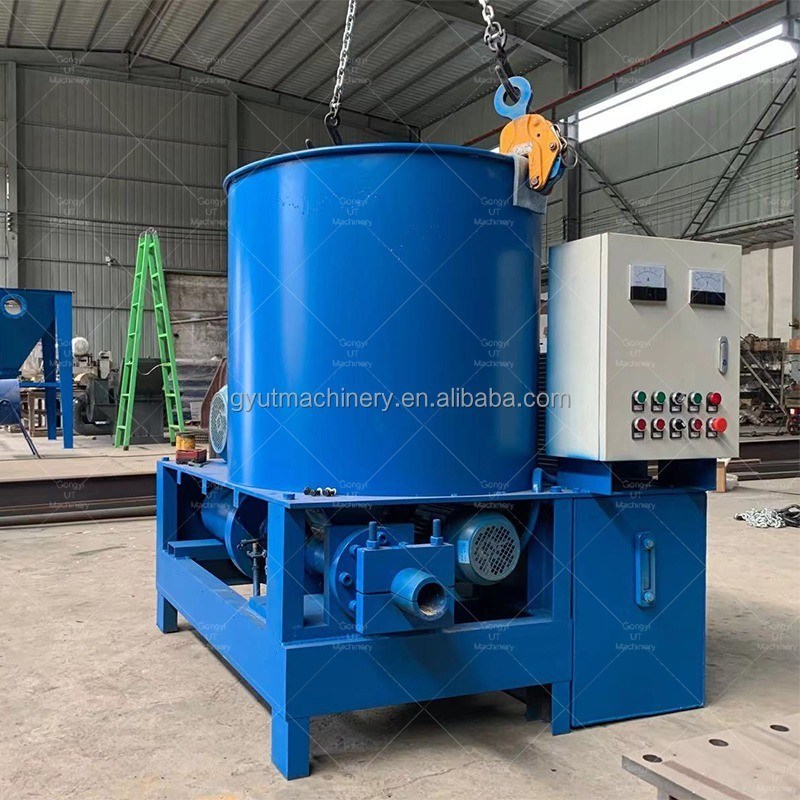

this is our machine pictures, kindly check it.
1.WHAT SERVICES DO WE OFFER?
Pre-sale communication → Design proposal, signature confirmation→
Customized production→ Test machine before shipment →Package &
delivery→ Engineer installation→Training operator → Technical support
2.PAYMENT TERMS:
50% of total amount should be paid by T/T as down payment ,the balance (50% of total amount) should be paid before delivery by T/T or irrevocable L/C by payment(at sight).
3.DELIVERY CONDITIONS:
3.1 Delivery condition: FOB Qingdao/ Shanghai port or CIF destination Port.
3.2 Delivery terms: Within 10-14 working days after receipt of advanced payment, the seller should inform the buyer to do inspection,the seller should finish packing of goods and ready for shipment within 15 working days after the seller receipt the full payment.
4.WARRANTY TERMS
5.1 Warranty period: 12 months, starting from the machine receipt in customer's warehouse
5.2 Seller shall grant: services and spare parts, free-of-charge service throughout the entire equipment during warranty period.
5.3 long life service: the seller should provide long life service for the sold goods, the buyer pay for needed spare parts after the 12months warranty terms.
5.INSPECTION
When the machine finished, the seller should inform the buyer to do inspection before shipment, the seller guaranty good performance of all the sold goods.the seller undertake the material cost for the machine inspection in seller's factory. the buyer should come to seller's factory to do the inspection work, or the buyer could entrust any third party to come to seller's factory to do the inspection work.
6.INSTALLATION AND EQUIPMENT COMMISSIONING:
if the buyer requires, the seller should send technician team to buyer's factory for installation and testing the whole line, and the buyer should undertake the whole food/place and round tickets (airplane, food, hotel, and so on), and pay salary to engineer for 100 usd/day/engineer.
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable models of our carbonization furnace, according to the raw material, including its type, huimidity, final charcoal capacity requirements.
2. Introduce machine's structure and features in detail, explain the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
Gongyi UT Machinery co.,ltd is located in Gongyi city, Henan province, a high-tech manufacturer specializing in research and development of equipment. As a professional manufacturer, we have a highly qualified and skilled engineer team, and advanced assembly workshop. Our products sell well at home and abroad, and enjoy good reputation.
We provide high-quality products and professional technical support.We aim at the management of market-oriented and customer-satisfied, we have a plot of improvement, constant upgrading product quality and service.
Our company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.
